型号：Flexcore

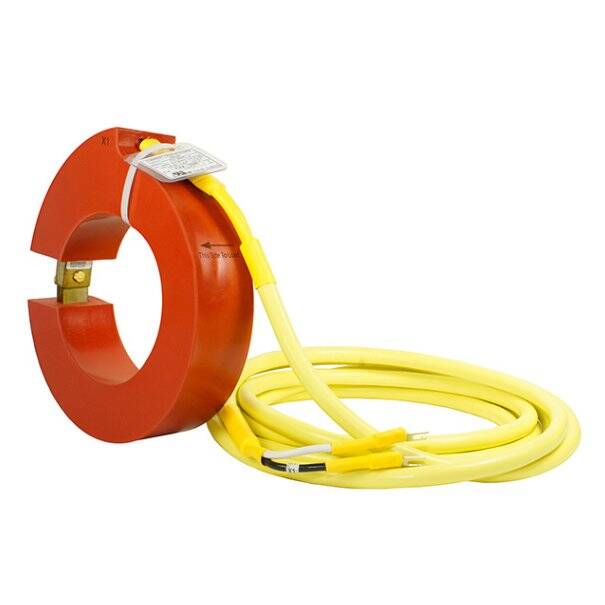

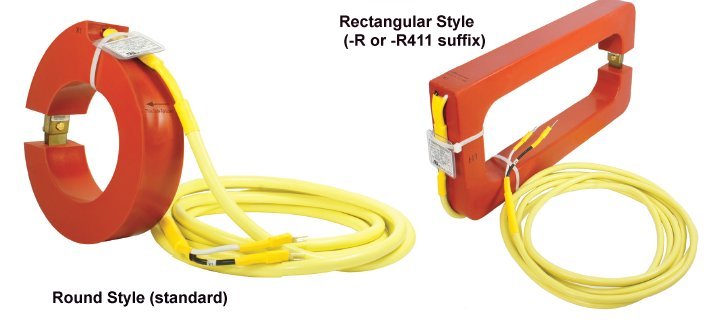

Flexcore 柔性 开口-磁芯 电流互感器 打开 带 twisting motion. silicone rubber encapsulation protects against moisture, dirt, 油 和 corona. 它们 remain 柔性 来自 -45° 以 +200°c.
seven 开口 尺寸规格
1 或 5 安 secondaries
0.333V 或 1.0V secondaries
室内 或 室外 使用
变压器 带 5A 二次侧 是 shown below.
Flexcore 柔性 开口-磁芯 电流互感器 打开 带 twisting motion. silicone rubber encapsulation protects against moisture, dirt, 油 和 corona. 它们 remain 柔性 来自 -45° 以 +200°c.
seven 开口 尺寸规格
1 或 5 安 secondaries
0.333V 或 1.0V secondaries
室内 或 室外 使用
变压器 带 5A 二次侧 是 shown below.
Flexcore 柔性 开口-磁芯 电流互感器 打开 带 twisting motion. silicone rubber encapsulation protects against moisture, dirt, 油 和 corona. 它们 remain 柔性 来自 -45° 以 +200°c.
变压器 带 5A 二次侧 是 shown below. 致电 用于 info 于 parts 带 1A 或 电压输出.
产品目录页 092 柔性-磁芯-FC 柔性-磁芯-FCL
seven 开口 尺寸规格
1 或 5 安 secondaries
0.333V 或 1.0V secondaries
室内 或 室外 使用
| Item # | Model | Ratio | Inside Diameter (in) | Burden | Accuracy |
|---|---|---|---|---|---|
| FC-1500/5-R411 | Split core CT | 1500/5 | 4 x 11 | 15VA | 1% |
| FC-1600/5-R411 | Split core CT | 1600/5 | 4 x 11 | 15VA | 1% |
| FC-2000/5-R411 | Split core CT | 2000/5 | 4 x 11 | 25VA | 1% |
| FC-2400/5-R411 | Split core CT | 2400/5 | 4 x 11 | 30VA | 1% |
| FC-400/5-R | Split core CT | 400/5 | 2 3/4 x 6 5/8 | 2VA | 3% |
| FC-500/5-R | Split core CT | 500/5 | 2 3/4 x 6 5/8 | 3VA | 3% |
| FC-600/5-R | Split core CT | 600/5 | 2 3/4 x 6 5/8 | 5VA | 2% |
| FC-800/5-R | Split core CT | 800/5 | 2 3/4 x 6 5/8 | 5VA | 2% |
| FC-1000/5-R | Split core CT | 1000/5 | 2 3/4 x 6 5/8 | 5VA | 1% |
| FC-1200/5-R | Split core CT | 1200/5 | 2 3/4 x 6 5/8 | 5VA | 1% |
| FC-1500/5-R | Split core CT | 1500/5 | 2 3/4 x 6 5/8 | 15VA | 1% |
| FC-1600/5-R | Split core CT | 1600/5 | 2 3/4 x 6 5/8 | 15VA | 1% |
| FC-2000/5-R | Split core CT | 2000/5 | 2 3/4 x 6 5/8 | 25VA | 1% |
| FC-2400/5-R | Split core CT | 2400/5 | 2 3/4 x 6 5/8 | 30VA | 1% |
| FC-2000/5-18 | Split core CT | 2000/5 | 18 | 25VA | 1% |
| FC-2400/5-18 | Split core CT | 2400/5 | 18 | 30VA | 1% |
| FC-1500/5-11 | Split core CT | 1500/5 | 11 | 15VA | 1% |
| FC-1600/5-11 | Split core CT | 1600/5 | 11 | 15VA | 1% |
| FC-2000/5-11 | Split core CT | 2000/5 | 11 | 25VA | 1% |
| FC-2400/5-11 | Split core CT | 2400/5 | 11 | 30VA | 1% |
| FC-1000/5-8 | Split core CT | 1000/5 | 8 | 5VA | 1% |
| FC-1500/5-8 | Split core CT | 1500/5 | 8 | 15VA | 1% |
| FC-1200/5-8 | Split core CT | 1200/5 | 8 | 5VA | 1% |
| FC-1600/5-8 | Split core CT | 1600/5 | 8 | 15VA | 1% |
| FC-2000/5-8 | Split core CT | 2000/5 | 8 | 25VA | 1% |
| FC-2400/5-8 | Split core CT | 2400/5 | 8 | 30VA | 1% |
| FC-300/5-6 | Split core CT | 300/5 | 6 | 2VA | 4% |
| FC-400/5-6 | Split core CT | 400/5 | 6 | 2VA | 3% |
| FC-500/5-6 | Split core CT | 500/5 | 6 | 3VA | 3% |
| FC-600/5-6 | Split core CT | 600/5 | 6 | 5VA | 2% |
| FC-800/5-6 | Split core CT | 800/5 | 6 | 5VA | 2% |
| FC-1000/5-6 | Split core CT | 1000/5 | 6 | 5VA | 1% |
| FC-1200/5-6 | Split core CT | 1200/5 | 6 | 5VA | 1% |
| FC-1500/5-6 | Split core CT | 1500/5 | 6 | 15VA | 1% |
| FC-1600/5-6 | Split core CT | 1600/5 | 6 | 15VA | 1% |
| FC-2000/5-6 | Split core CT | 2000/5 | 6 | 25VA | 1% |
| FC-2400/5-6 | Split core CT | 2400/5 | 6 | 30VA | 1% |
| FC-200/5-4 | Split core CT | 200/5 | 4 | 2VA | 4% |
| FC-250/5-4 | Split core CT | 250/5 | 4 | 2VA | 4% |
| FC-300/5-4 | Split core CT | 300/5 | 4 | 2VA | 4% |
| FC-400/5-4 | Split core CT | 400/5 | 4 | 2VA | 3% |
| FC-500/5-4 | Split core CT | 500/5 | 4 | 3VA | 3% |
| FC-600/5-4 | Split core CT | 600/5 | 4 | 5VA | 2% |
| FC-800/5-4 | Split core CT | 800/5 | 4 | 5VA | 2% |
| FC-1000/5-4 | Split core CT | 1000/5 | 4 | 5VA | 1% |
| FC-1200/5-4 | Split core CT | 1200/5 | 4 | 5VA | 1% |
| FC-1500/5-4 | Split core CT | 1500/5 | 4 | 15VA | 1% |
| FC-1600/5-4 | Split core CT | 1600/5 | 4 | 15VA | 1% |
| FC-2000/5-4 | Split core CT | 2000/5 | 4 | 25VA | 1% |
| FC-6000/5-6 | Split core CT | 6000/5 | 6 | 45VA | 1% |
| FC-2500/5-6 | Split core CT | 2500/5 | 6 | 35VA | 1% |
| FC-3000/5-6 | Split core CT | 3000/5 | 6 | 45VA | 1% |
| FC-3500/5-6 | Split core CT | 3500/5 | 6 | 45VA | 1% |
| FC-4000/5-6 | Split core CT | 4000/5 | 6 | 45VA | 1% |
| FC-5000/5-6 | Split core CT | 5000/5 | 6 | 45VA | 1% |
| FC-2500/5-8 | Split core CT | 2500/5 | 8 | 35VA | 1% |
| FC-3000/5-8 | Split core CT | 3000/5 | 8 | 45VA | 1% |
| FC-3500/5-8 | Split core CT | 3500/5 | 8 | 45VA | 1% |
| FC-4000/5-8 | Split core CT | 4000/5 | 8 | 45VA | 1% |
| FC-5000/5-8 | Split core CT | 5000/5 | 8 | 45VA | 1% |
| FC-6000/5-8 | Split core CT | 6000/5 | 8 | 45VA | 1% |
| FC-2500/5-11 | Split core CT | 2500/5 | 11 | 35VA | 1% |
| FC-3000/5-11 | Split core CT | 3000/5 | 11 | 45VA | 1% |
| FC-3500/5-11 | Split core CT | 3500/5 | 11 | 45VA | 1% |
| FC-4000/5-11 | Split core CT | 4000/5 | 11 | 45VA | 1% |
| FC-5000/5-11 | Split core CT | 5000/5 | 11 | 45VA | 1% |
| FC-6000/5-11 | Split core CT | 6000/5 | 11 | 45VA | 1% |
| FC-2500/5-18 | Split core CT | 2500/5 | 18 | 35VA | 1% |
| FC-3000/5-18 | Split core CT | 3000/5 | 18 | 45VA | 1% |
| FC-3500/5-18 | Split core CT | 3500/5 | 18 | 45VA | 1% |
| FC-4000/5-18 | Split core CT | 4000/5 | 18 | 45VA | 1% |
| FC-5000/5-18 | Split core CT | 5000/5 | 18 | 45VA | 1% |
| FC-6000/5-18 | Split core CT | 6000/5 | 18 | 45VA | 1% |
| FC-2500/5-R | Split core CT | 2500/5 | 2 3/4 x 6 5/8 | 35VA | 1% |
| FC-3000/5-R | Split core CT | 3000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FC-3500/5-R | Split core CT | 3500/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FC-4000/5-R | Split core CT | 4000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FC-5000/5-R | Split core CT | 5000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FC-6000/5-R | Split core CT | 6000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FC-2500/5-R411 | Split core CT | 2500/5 | 4 x 11 | 35VA | 1% |
| FC-3500/5-R411 | Split core CT | 3500/5 | 4 x 11 | 45VA | 1% |
| FC-3000/5-R411 | Split core CT | 3000/5 | 4 x 11 | 45VA | 1% |
| FC-4000/5-R411 | Split core CT | 4000/5 | 4 x 11 | 45VA | 1% |
| FC-6000/5-R411 | Split core CT | 6000/5 | 4 x 11 | 45VA | 1% |
| FCL-250/5-4 | UL Listed (Indoor use only) File E186575 | 250/5 | 4 | 2VA | 4% |
| FC-5000/5-R411 | Split core CT | 5000/5 | 4 x 11 | 45VA | 1% |
| FCL-200/5-4 | UL Listed (Indoor use only) File E186575 | 200/5 | 4 | 2VA | 4% |
| FCL-500/5-4 | UL Listed (Indoor use only) File E186575 | 500/5 | 4 | 3VA | 3% |
| FCL-300/5-4 | UL Listed (Indoor use only) File E186575 | 300/5 | 4 | 2VA | 4% |
| FCL-400/5-4 | UL Listed (Indoor use only) File E186575 | 400/5 | 4 | 2VA | 3% |
| FCL-600/5-4 | UL Listed (Indoor use only) File E186575 | 600/5 | 4 | 5VA | 2% |
| FCL-1500/5-4 | UL Listed (Indoor use only) File E186575 | 1500/5 | 4 | 15VA | 1% |
| FCL-800/5-4 | UL Listed (Indoor use only) File E186575 | 800/5 | 4 | 5VA | 2% |
| FCL-1000/5-4 | UL Listed (Indoor use only) File E186575 | 1000/5 | 4 | 5VA | 1% |
| FCL-1200/5-4 | UL Listed (Indoor use only) File E186575 | 1200/5 | 4 | 5VA | 1% |
| FCL-2000/5-4 | UL Listed (Indoor use only) File E186575 | 2000/5 | 4 | 25VA | 1% |
| FCL-1600/5-4 | UL Listed (Indoor use only) File E186575 | 1600/5 | 4 | 15VA | 1% |
| FCL-300/5-6 | UL Listed (Indoor use only) File E186575 | 300/5 | 6 | 2VA | 4% |
| FCL-400/5-6 | UL Listed (Indoor use only) File E186575 | 400/5 | 6 | 2VA | 3% |
| FCL-1000/5-6 | UL Listed (Indoor use only) File E186575 | 1000/5 | 6 | 5VA | 1% |
| FCL-800/5-6 | UL Listed (Indoor use only) File E186575 | 800/5 | 6 | 5VA | 2% |
| FCL-500/5-6 | UL Listed (Indoor use only) File E186575 | 500/5 | 6 | 3VA | 3% |
| FCL-600/5-6 | UL Listed (Indoor use only) File E186575 | 600/5 | 6 | 5VA | 2% |
| FCL-1500/5-6 | UL Listed (Indoor use only) File E186575 | 1500/5 | 6 | 15VA | 1% |
| FCL-1200/5-6 | UL Listed (Indoor use only) File E186575 | 1200/5 | 6 | 5VA | 1% |
| FCL-1600/5-6 | UL Listed (Indoor use only) File E186575 | 1600/5 | 6 | 15VA | 1% |
| FCL-2000/5-6 | UL Listed (Indoor use only) File E186575 | 2000/5 | 6 | 25VA | 1% |
| FCL-2400/5-6 | UL Listed (Indoor use only) File E186575 | 2400/5 | 6 | 30VA | 1% |
| FCL-2500/5-6 | UL Listed (Indoor use only) File E186575 | 2500/5 | 6 | 35VA | 1% |
| FCL-3000/5-6 | UL Listed (Indoor use only) File E186575 | 3000/5 | 6 | 45VA | 1% |
| FCL-3500/5-6 | UL Listed (Indoor use only) File E186575 | 3500/5 | 6 | 45VA | 1% |
| FCL-5000/5-6 | UL Listed (Indoor use only) File E186575 | 5000/5 | 6 | 45VA | 1% |
| FCL-6000/5-6 | UL Listed (Indoor use only) File E186575 | 6000/5 | 6 | 45VA | 1% |
| FCL-4000/5-6 | UL Listed (Indoor use only) File E186575 | 4000/5 | 6 | 45VA | 1% |
| FCL-1000/5-8 | UL Listed (Indoor use only) File E186575 | 1000/5 | 8 | 5VA | 1% |
| FCL-1200/5-8 | UL Listed (Indoor use only) File E186575 | 1200/5 | 8 | 5VA | 1% |
| FCL-2000/5-8 | UL Listed (Indoor use only) File E186575 | 2000/5 | 8 | 25VA | 1% |
| FCL-1600/5-8 | UL Listed (Indoor use only) File E186575 | 1600/5 | 8 | 15VA | 1% |
| FCL-1500/5-8 | UL Listed (Indoor use only) File E186575 | 1500/5 | 8 | 15VA | 1% |
| FCL-3500/5-8 | UL Listed (Indoor use only) File E186575 | 3500/5 | 8 | 45VA | 1% |
| FCL-3000/5-8 | UL Listed (Indoor use only) File E186575 | 3000/5 | 8 | 45VA | 1% |
| FCL-2500/5-8 | UL Listed (Indoor use only) File E186575 | 2500/5 | 8 | 35VA | 1% |
| FCL-2400/5-8 | UL Listed (Indoor use only) File E186575 | 2400/5 | 8 | 30VA | 1% |
| FCL-1500/5-11 | UL Listed (Indoor use only) File E186575 | 1500/5 | 11 | 15VA | 1% |
| FCL-5000/5-8 | UL Listed (Indoor use only) File E186575 | 5000/5 | 8 | 45VA | 1% |
| FCL-4000/5-8 | UL Listed (Indoor use only) File E186575 | 4000/5 | 8 | 45VA | 1% |
| FCL-6000/5-8 | UL Listed (Indoor use only) File E186575 | 6000/5 | 8 | 45VA | 1% |
| FCL-2000/5-11 | UL Listed (Indoor use only) File E186575 | 2000/5 | 11 | 25VA | 1% |
| FCL-1600/5-11 | UL Listed (Indoor use only) File E186575 | 1600/5 | 11 | 15VA | 1% |
| FCL-2400/5-11 | UL Listed (Indoor use only) File E186575 | 2400/5 | 11 | 30VA | 1% |
| FCL-2500/5-11 | UL Listed (Indoor use only) File E186575 | 2500/5 | 11 | 35VA | 1% |
| FCL-3000/5-11 | UL Listed (Indoor use only) File E186575 | 3000/5 | 11 | 45VA | 1% |
| FCL-3500/5-11 | UL Listed (Indoor use only) File E186575 | 3500/5 | 11 | 45VA | 1% |
| FCL-5000/5-11 | UL Listed (Indoor use only) File E186575 | 5000/5 | 11 | 45VA | 1% |
| FCL-4000/5-11 | UL Listed (Indoor use only) File E186575 | 4000/5 | 11 | 45VA | 1% |
| FCL-2400/5-18 | UL Listed (Indoor use only) File E186575 | 2400/5 | 18 | 30VA | 1% |
| FCL-6000/5-11 | UL Listed (Indoor use only) File E186575 | 6000/5 | 11 | 45VA | 1% |
| FCL-2000/5-18 | UL Listed (Indoor use only) File E186575 | 2000/5 | 18 | 25VA | 1% |
| FCL-2500/5-18 | UL Listed (Indoor use only) File E186575 | 2500/5 | 18 | 35VA | 1% |
| FCL-4000/5-18 | UL Listed (Indoor use only) File E186575 | 4000/5 | 18 | 45VA | 1% |
| FCL-3500/5-18 | UL Listed (Indoor use only) File E186575 | 3500/5 | 18 | 45VA | 1% |
| FCL-5000/5-18 | UL Listed (Indoor use only) File E186575 | 5000/5 | 18 | 45VA | 1% |
| FCL-3000/5-18 | UL Listed (Indoor use only) File E186575 | 3000/5 | 18 | 45VA | 1% |
| FCL-6000/5-18 | UL Listed (Indoor use only) File E186575 | 6000/5 | 18 | 45VA | 1% |
| FCL-500/5-R | UL Listed (Indoor use only) File E186575 | 500/5 | 2 3/4 x 6 5/8 | 3VA | 3% |
| FCL-400/5-R | UL Listed (Indoor use only) File E186575 | 400/5 | 2 3/4 x 6 5/8 | 2VA | 3% |
| FCL-600/5-R | UL Listed (Indoor use only) File E186575 | 600/5 | 2 3/4 x 6 5/8 | 5VA | 2% |
| FCL-800/5-R | UL Listed (Indoor use only) File E186575 | 800/5 | 2 3/4 x 6 5/8 | 5VA | 2% |
| FCL-1000/5-R | UL Listed (Indoor use only) File E186575 | 1000/5 | 2 3/4 x 6 5/8 | 5VA | 1% |
| FCL-1200/5-R | UL Listed (Indoor use only) File E186575 | 1200/5 | 2 3/4 x 6 5/8 | 5VA | 1% |
| FCL-1500/5-R | UL Listed (Indoor use only) File E186575 | 1500/5 | 2 3/4 x 6 5/8 | 15VA | 1% |
| FCL-2500/5-R | UL Listed (Indoor use only) File E186575 | 2500/5 | 2 3/4 x 6 5/8 | 35VA | 1% |
| FCL-1600/5-R | UL Listed (Indoor use only) File E186575 | 1600/5 | 2 3/4 x 6 5/8 | 15VA | 1% |
| FCL-2000/5-R | UL Listed (Indoor use only) File E186575 | 2000/5 | 2 3/4 x 6 5/8 | 25VA | 1% |
| FCL-2400/5-R | UL Listed (Indoor use only) File E186575 | 2400/5 | 2 3/4 x 6 5/8 | 30VA | 1% |
| FCL-5000/5-R | UL Listed (Indoor use only) File E186575 | 5000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FCL-4000/5-R | UL Listed (Indoor use only) File E186575 | 4000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FCL-3500/5-R | UL Listed (Indoor use only) File E186575 | 3500/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FCL-3000/5-R | UL Listed (Indoor use only) File E186575 | 3000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FCL-1500/5-R411 | UL Listed (Indoor use only) File E186575 | 1500/5 | 4 x 11 | 15VA | 1% |
| FCL-6000/5-R | UL Listed (Indoor use only) File E186575 | 6000/5 | 2 3/4 x 6 5/8 | 45VA | 1% |
| FCL-1600/5-R411 | UL Listed (Indoor use only) File E186575 | 1600/5 | 4 x 11 | 15VA | 1% |
| FCL-2000/5-R411 | UL Listed (Indoor use only) File E186575 | 2000/5 | 4 x 11 | 25VA | 1% |
| FCL-3000/5-R411 | UL Listed (Indoor use only) File E186575 | 3000/5 | 4 x 11 | 45VA | 1% |
| FCL-2400/5-R411 | UL Listed (Indoor use only) File E186575 | 2400/5 | 4 x 11 | 30VA | 1% |
| FCL-2500/5-R411 | UL Listed (Indoor use only) File E186575 | 2500/5 | 4 x 11 | 35VA | 1% |
| FCL-3500/5-R411 | UL Listed (Indoor use only) File E186575 | 3500/5 | 4 x 11 | 45VA | 1% |
| FCL-4000/5-R411 | UL Listed (Indoor use only) File E186575 | 4000/5 | 4 x 11 | 45VA | 1% |
| FCL-6000/5-R411 | UL Listed (Indoor use only) File E186575 | 6000/5 | 4 x 11 | 45VA | 1% |
| FCL-5000/5-R411 | UL Listed (Indoor use only) File E186575 | 5000/5 | 4 x 11 | 45VA | 1% |
登录注册后查看更多技术资料
(产品样本 / 使用说明书 / 通讯指令 / 软件下载)
