热水 和 steam 压力 用于 boilers

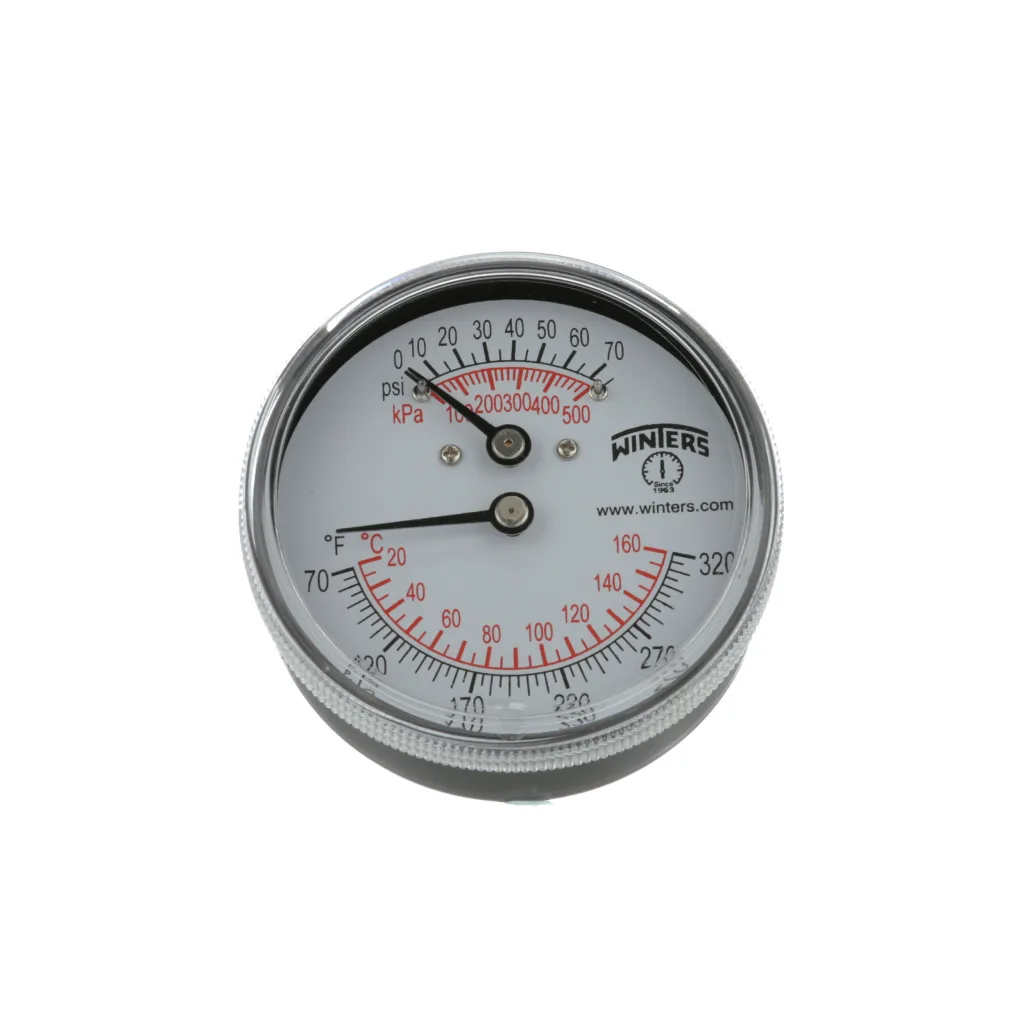

测量 两者 压力 和 温度 于 same 表盘
2.5” (63mm) 和 3” (75mm) dials
双 刻度 (°f 与 °c)

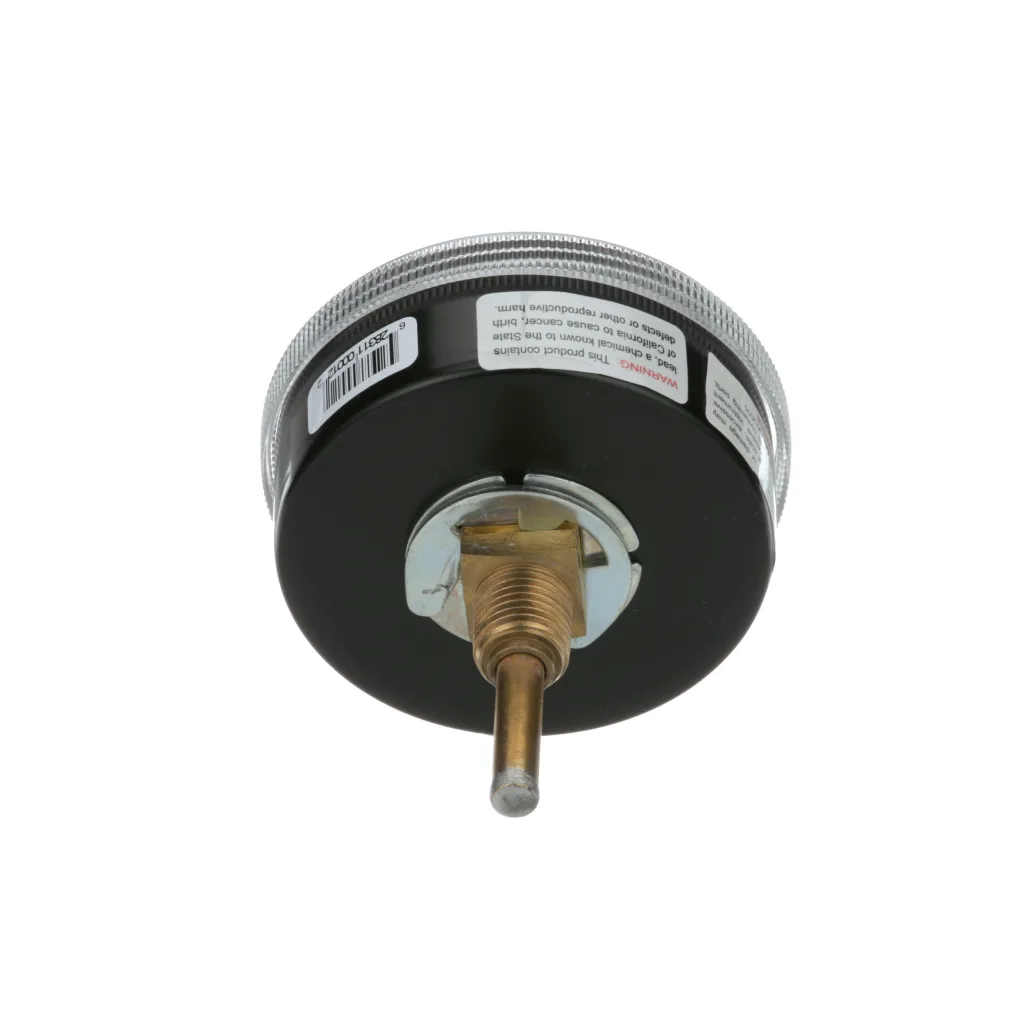

背面 或 底部 连接
黄铜 wetted parts
1″ (25mm), 2” (50mm) 和 2.5″ (63mm) stems
多种 压力 和 温度 量程 可选
量程 是 compliant 以 行业 标准 ASME boiler code section IV HG-612
5 年 质保
documentation:
| Dial | 2.5” (63mm), 3” (75mm) aluminum, painted white |
| Case | Steel, painted black |
| Lens | 2.5" (63mm): Acrylic, threaded 3” (75mm): Glass |
| Ring | 3” (75mm): Chrome |
| Stem | Brass |
| Socket | Brass |
| Tube | Phosphor bronze |
| Movement | Brass and phosphor bronze |
| Sensing Element | Temperature: Bi-metallic coil Pressure: Bourdon tube |
| Pointer | Aluminum, anodized black |
| Welding | Tin-alloy solder |
| Pressure Limit | 75% of full scale range |
| Ambient Temperature | 23°F to 122°F (-5°C to 50°C) |
| Process Temperature | 75% of full scale range |
| Accuracy | Pressure: ±3-2-3% Temperature: ±3% of full scale |
| Enclosure Rating | IP50 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
