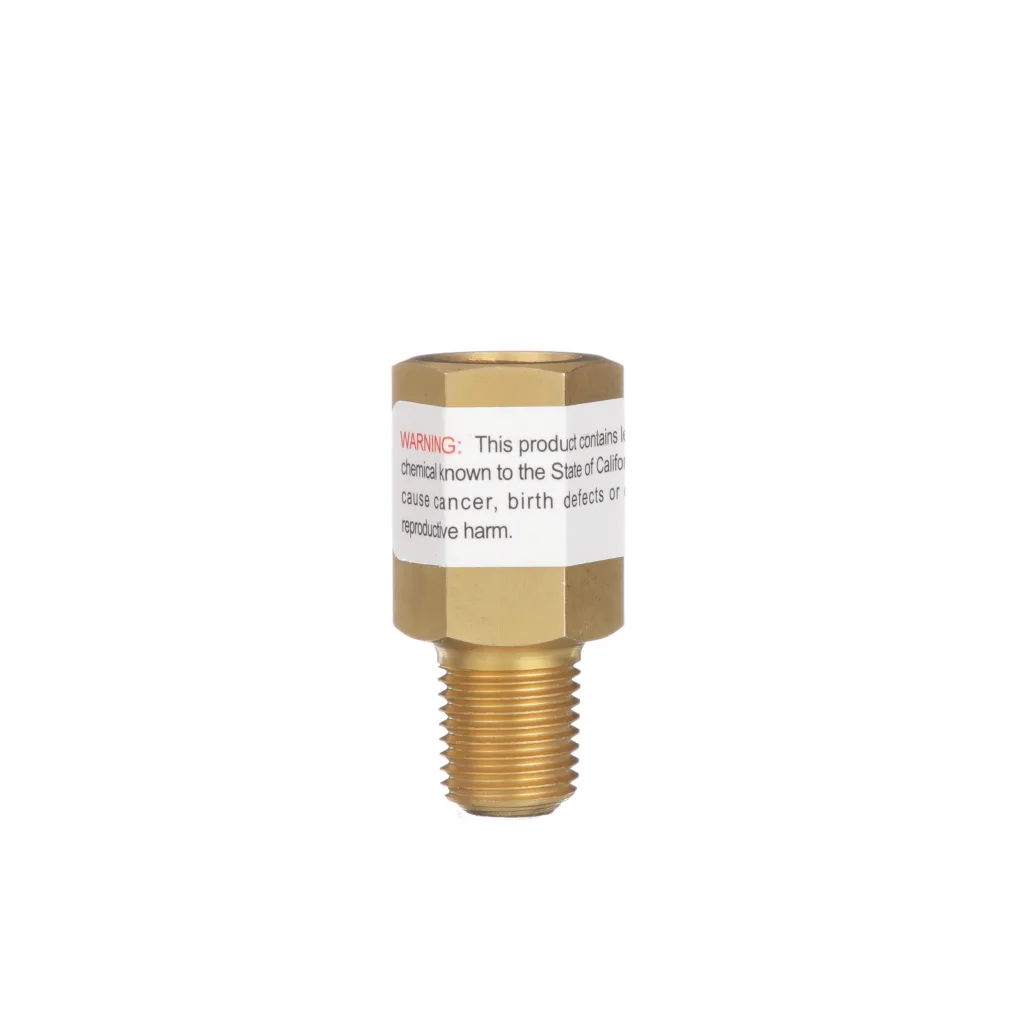

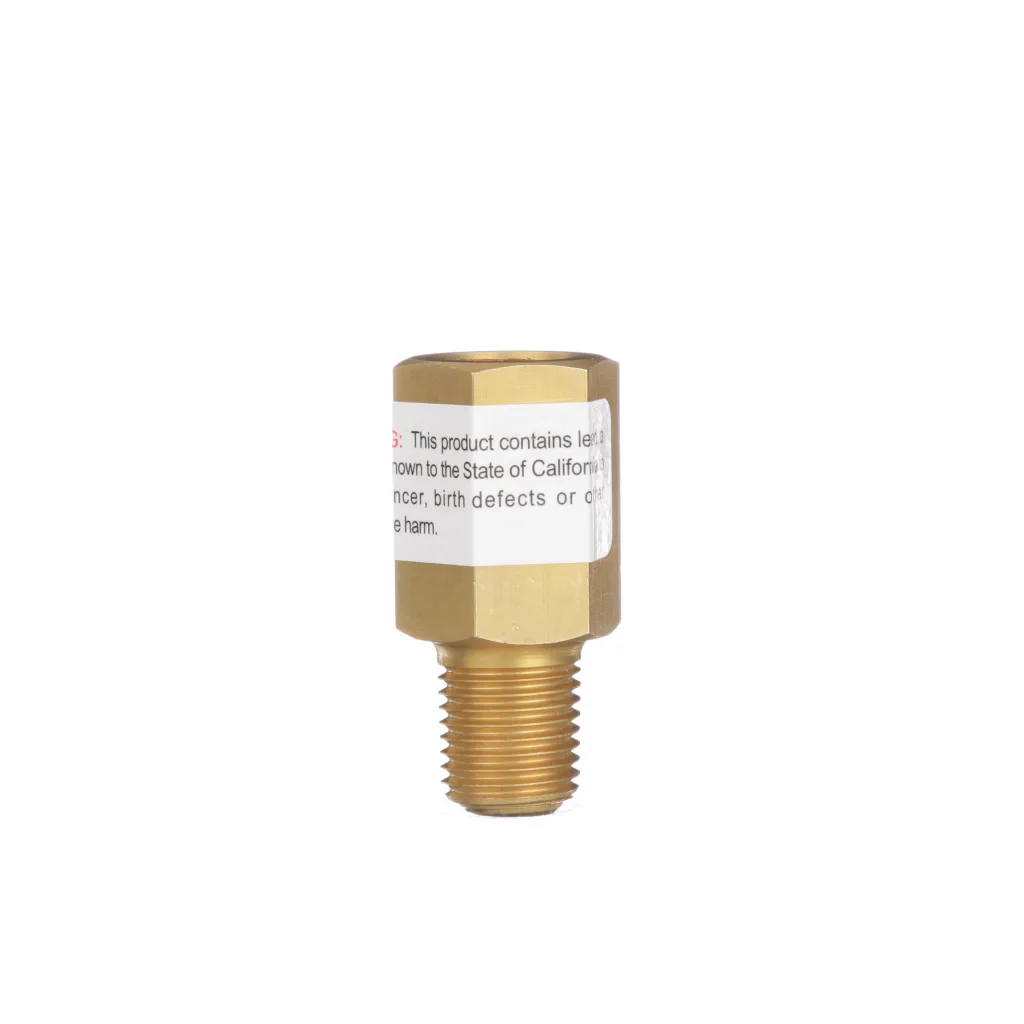

SSN 阻尼器 / SSN-LF LEAD 无 阻尼器
返回
型号：SSN
以 significantly lessen damaging effects 的 pulsation 于 表, 变送器, 变送器, manometers 和 压力开关
以 significantly lessen damaging effects 的 pulsation 于 表, 变送器, 变送器, manometers 和 压力开关
incorporates sintered, porous 316 不锈钢 snubbing element 带 大型 表面 区域 以 ensure 长 term effectiveness
提供 三 标准 viscosity classifications 的 heavy 油, 水 和 air
黄铜, 无铅 黄铜 或 不锈钢 housings 可 specified depending upon 压力 media 和 运行 压力
ASME B40.100 compliant
RoHS compliant (SS 阻尼器 仅)
CRN registered
5 年 质保
Stainless Steel | Brass | |
| Operating Temperature | -320°F to 1,500°F (-195°C to 815°C) | -65°F to 650°F (-53°C to 343°C) |
| Operating Pressure | Maximum 20,000 psi (137,900 kPa) | Maximum 10,000 psi (68,950 kPa) |
| Burst Pressure | 60,000 psi (413,700 kPa) | 30,000 psi (206,850 kPa) |
| Housing | 316 SS | SSN: Brass SSN-LF: Lead free brass |
| Snubbing Element | Sintered, porous type 316 SS | Sintered, porous type 316 SS |
| Retainer | 300 series SS | 300 series SS |
| Warning (brass internals only) | N/A |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
