适用 用于 差压 压力 应用 在 危险 区域 包括 过滤器 监测 和 控制

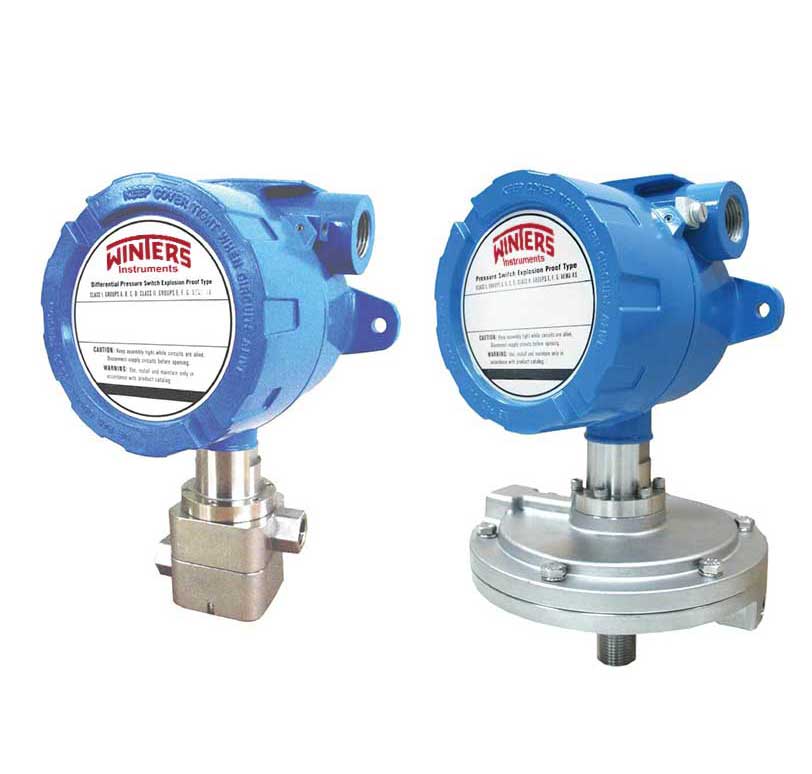

heavy-工况, 防爆, diff erential 压力开关
低压 以 300 psi
高 电流 ratings 用于 1 x SPDT 或 2 x SPDT 开关
fixed 死区
压铸 铝 结构 带 welded 密封
1% 精度
IP68 额定 包括 hermetically sealed 选件
culus listed 和 RU 认证
CRN registration pending
5 年 质保
| Housing | Heavy-duty die-cast aluminum, blue colour |
| Accuracy | +/- 1% of the adjustable set-point rang |
| Pressure Connection | Female 1/4" NPT, BSP |
| Electrical Connection | Female 1/2" or 3/4" NPT, M20xP1.5 |
| Wetted Parts |
Low pressure ranges - 316 Stainless Steel welded & Titanium High pressure ranges - 316 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed, see Order Codes |
| Contact Rating |
Fixed Deadband: 15A @ 125/250VAC, 0.4A @ 125VDC 3A @ 30VDC Hermetically sealed switch 5A @ 250VAC Gold contact microswitch 1A @ 125/250VAC |
| No. of Contacts | 1 x SPDT or 2 x SPDT |
| Ambient/Process Temperature | -30 to 205 deg C (-22 to 400 deg F) |
| Enclosure Rating |
IP68 Protection from dust ingress and submersion in fresh water to a maximum depth of 1.5 metres for up to 30 minutes |
| Approvals |
cULus listed, Class I Divison 1 Groups A, B, C & D Class II Divison 1 Groups E, F & G (housing) RU recognized, fi le no E12252 (switch) CRN registration pending |
| Weight | 7.5 lbs (3.4 kg) |
