CONQUEST 100 混凝土结构扫描仪
返回

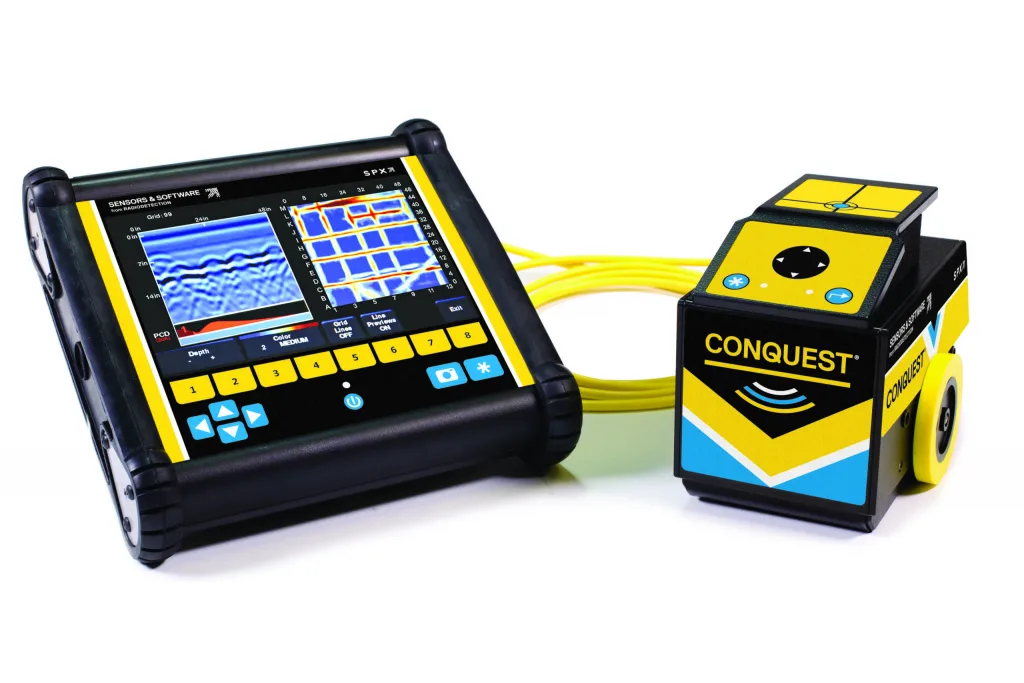

conquest® GPR 为 轻巧, 便携式 设备 该 提供 快速, non-invasive 方法 以 gain 精确 insights 的 objects below concrete 表面, 即使 于 curved 表面 或 column.
conquest® GPR 为 轻巧, 便携式 设备 该 提供 快速, non-invasive 方法 以 gain 精确 insights 的 objects below concrete 表面, 即使 于 curved 表面 或 column.
unlock 世界 的 subsurface information 带 一 快速 扫描.
conquest® 100 支持 您 以 get rapid, 可靠 结果 和 reduce 需要 用于 destructive 测试. 它 为 轻巧, 便携式 设备 该 提供 快速, non-invasive 方法 以 gain 精确 insights 的 objects below concrete 表面, 即使 于 curved 表面 或 column.

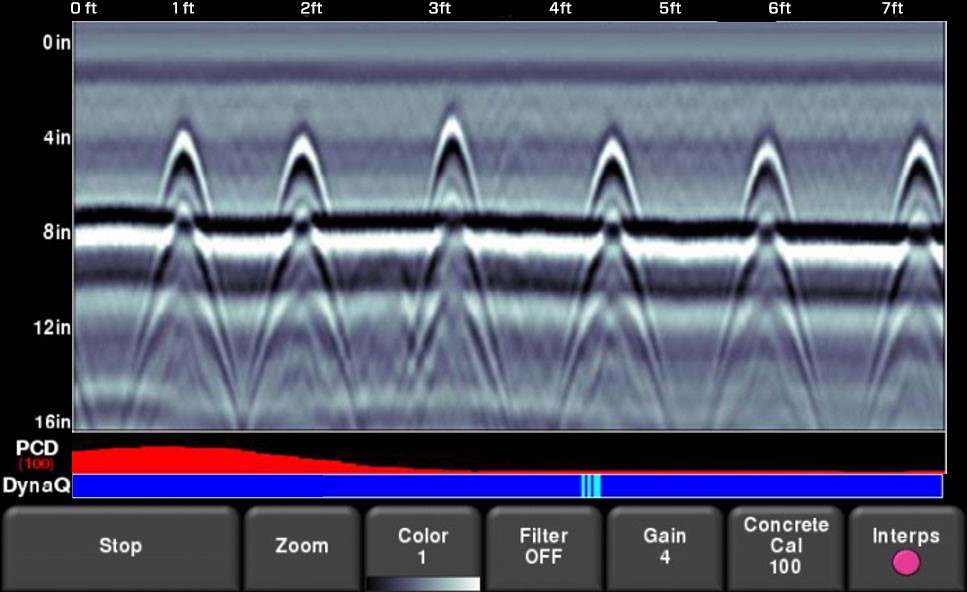

conquest® 100 GPR increases 安全 通过 detecting rebar, post-tension 线缆, metallic 和 non-metallic conduits 作为 井 作为 电流-携带 wires embedded 在 concrete. once 您的 concrete 扫描 为 完整, 系统 支持 您 以 e-mail information 直接 来自 现场 在 形式 的 Wi-Fi 迷你-报告. 带 conquest® 100 enhanced, 您 还可 具有 选件 以 add powerful 可选 ekko_project™ 软件 以 查看 您的 数据 和 使 client-ready 报告 在 minutes once 背面 在 office.
get 您的 conquest® 100 today 和 unlock following GPR 应用
乏（var）产品_name = "conquest100";乏（var）category_name = "products"
型式 的 inquiry * request quote rentals GPR training technical support parts, service 与 repairs information request (其他)

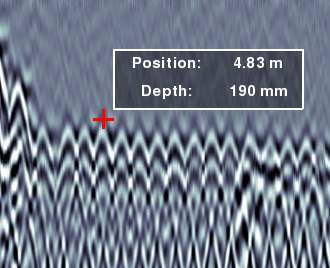

finding electric 电缆 在 concrete slab
GPR anomaly was indeed combined 响应 的 rebar 和 电气 电缆. cutting crew was able 以 avoid potential injury 和 project continued 于 schedule.
brochure
copyright© 2026 传感器 与 软件 inc. 全部 rights reserved. consent preferences
| Category | Display Unit | Sensor head | Transport Case |
|---|---|---|---|
| Size | 24 x 24 x 14 cm (9.5 x 9.5 x 5.5 in) | 149 x 131 x 191 mm (5.85 x 5.15 x 7.50 in) | 83 x 44 x 26 cm (33 x 17 x 10 in) |
| Weight | Display: 2.88 kg (6.35 lbs)
Battery: 0.49 kg (1.08 lbs) |
1.10 kg (2.43 lbs) | 21 kg (46 lbs) |
| Power Consumption* | 1.5A @12V | 250 mA @ 12V | |
| Display Unit screen | 8.0″ high-visibility, sunlight-readable diagonal LCD display with touchscreen Adjustable backlighting 1000 NIT and 800:1 contrast ratio |
||
| Colors | 24 total color palettes (8 color palettes with 3 contrast levels per palette) | ||
| Wireless | Integrated modules: Wi-Fi (IEEE 802.11 b,g,n) GPS/GLONASS |
||
| Audio | Built-in speaker – 85dBA speaker w/volume control Wireless connectivity |
||
| Battery | Lithium Battery pack Battery Life: 4-6 hours Battery Capacity: 9 Ah Built-in power management features to conserve battery power and preserve data integrity |
||
| Battery Storage | Recommended conditions for battery storage are -20 to 25°C. Maximum temperature range for battery storage is -20 to 60°C. Extended storage above 40°C could degrade battery performance and life. |
||
| Display Unit input | 10-24VDC, 4A maximum | ||
| Charger | Built-in charger with status indicator Universal AC mains charger input: 100-240VAC, 2A, 50/60Hz Output: 18V, 3-4A, 80W Max |
||
| Acquisition Rate | 100,000 samples/s | ||
| Power Cable Detector | Locates 50 or 60 Hz (user selectable) | ||
| GPR Trigger | 2-wheel drive optical encoder, ≤ 0.5mm resolution | ||
| Temperature & Environmental | Ruggedized, environmentally sealed unit and connections Ingress protection (IP) rating: Display Unit is rated to IP65 under IEC 60529 Relative Humidity operation (non-condensing): 10 – 90% Display Unit operating temperature range: -20 to 50°C (-4 F to 122 F) Use battery charger/AC adapter between 0 and 35°C. |
||
| Regulatory Specifications | EMC-FCC, CE, IC Safety-TUV, CE |
||
| Criteria | Conquest 100 | Conquest 100 Enhanced |
| Data Export Format | Screenshots (.JPG) | Screenshots (.JPG), and Project (.GPZ) files |
| File organization | Lines and Grids | Projects containing Lines, Grids & Screenshots |
| Data Storage | 1 Project with:
|
20 Projects each with:
|
| View Depth | User Defined: 30 – 91 cm (12 – 36 in) | |
| Maximum Line Length | 50 m (150 ft) | |
| Grid sizes | US Standard Metric
24 x 24 in 600 x 600 mm 48 x 48 in 1200 x 1200 mm 48 x 24 in 1200 x 600 mm
|
US Standard Metric
24 x 24 in 600 x 600 mm 48 x 48 in 1200 x 1200 mm 48 x 24 in 1200 x 600 mm 96 x 24 in 2400 x 600 mm 96 x 96 in 2400 x 2400 mm |
| Data Quality Enhancement | DynaQ® – Dynamic Quality Auto Stacking
Spatial Filtering |
|
| PC-based data display | Any .JPG viewing software | GPR data post processing using optional EKKO_Project™ |
