LMX150 FINDAR 管线定位 GPR
返回
型号：LMX150
高 分辨率 接地 penetrating radar 用于 forensics 和 公用事业 locating 应用 LMX150™ FINDAR® 为 our 接地 penetrating radar 设计 和 优化 用于 forensics…
高 分辨率 接地 penetrating radar 用于 forensics 和 公用事业 locating 应用 LMX150™ FINDAR® 为 our 接地 penetrating radar 设计 和 优化 用于 forensics…
高 分辨率 接地 penetrating radar 用于 forensics 和 公用事业 loc

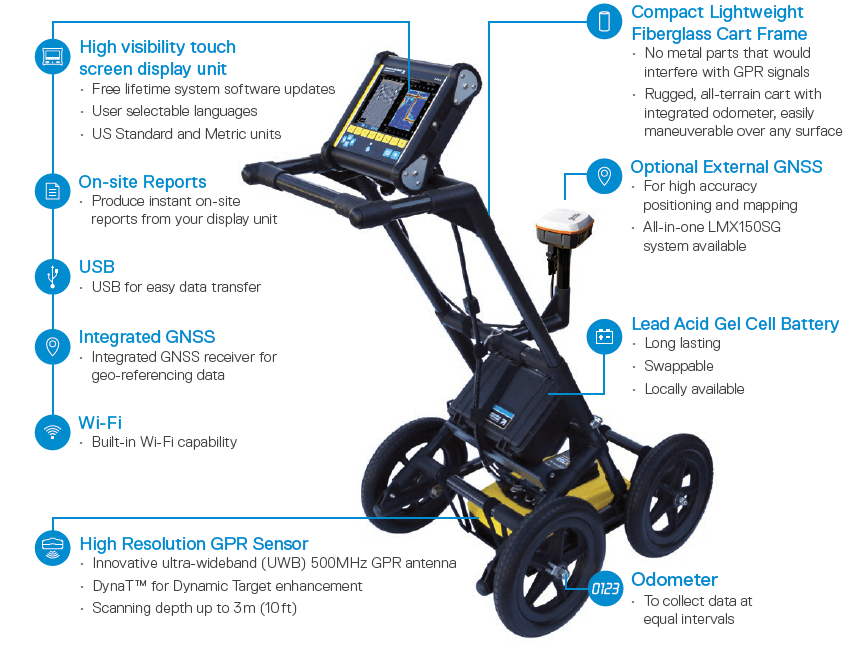

LMX150™ FINDAR® 为 our 接地 penetrating radar 设计 和 优化 用于 forensics 和 公用事业 locating 应用. LMX150™ FINDAR® 提供 non destructive, 设计 用于 real-时间 结果 以 帮助 pinpoint targets 的 interest.
GPR 为 great complement 以 传统 locating tools.
| Specification |
LMX100 |
LMX200 |
LMX150 FINDAR | |
|---|---|---|---|---|
Data collection depth (in suitable conditions) |
8m (30 ft) | 3m (10 ft) | ||
Preset Grid Sizes |
N/A | 5×5, 10×10, 15x15m 10×10, 20×20, 50x50ft Partial grids acceptable |
3x3m, 5x5m, 10x10m, 15x15m 10×10 ft, 20×20 ft, 30×30 ft, 40×40 ft Partial grids acceptable |
|
Data Viewing |
In-field Display: cross-section of Lines, Screenshots PC: Screenshots (jpg) |
In-field Display: cross-section of Lines, depth slices of Grid Scans, MapView Output Files: GPZ, KMZ, CSV, JPG (Screenshots) PC: Optional EKKO_Project software for further analysis & reporting of GPZ files |
||
Data Storage |
999 screenshots | 380 km (236 miles) of data 9 Projects 891 Line Scans 90 Grid Scans 8991 screenshots |
230 km (143 miles) of data 9 Projects 891 Line Scans 90 Grid Scans 8991 screenshots |
|
Step Size |
0.05m (20 traces/m) 0.16 ft (6 traces/ft) |
0.02m (50 traces/m) 0.066 ft (15 traces/ft) |
||
System Size
|
100 x 70 x 115 cm (39.4 x 27.6 x 45.3 inches) | 115 × 55 × 90 cm (45 × 21 × 35 in) | ||
System Weight |
22 kg (48 lbs) | 19 kg (41 lbs) | ||
GPR Sensor size |
63 × 41 × 23 cm (25 × 16 × 9 in) | 38 x 23 x 15 cm (15 x 9 x 6 in) | ||
GPR Sensor weight |
5 kg (11 lbs) | 2.5 kg (5.5 lbs) | ||
Optional Deluxe Shipping Case |
81x79x56 cm (32x31x22 inches) | 81x61x56 cm (32x24x22 inches) | ||
Display Unit weight |
2.83 kg (6.24 lbs) | |||
Screen |
8.0″ (21 cm) diagonal, high-visibility touch screen LCD color display Adjustable backlighting 1500 NIT and 800:1 contrast ratio |
|||
Wireless |
Integrated modules: Wi–Fi (IEEE 802.11 b,g,n) GNSS (+/- 10m) |
|||
Audio |
Built–in speaker–85dBA speaker w/volume control | |||
Battery |
12 Volt Lead acid gel cell Battery Capacity: 9.0 Ah Battery Life: 4–6 hours Weight: 3.6 kg (7.9 lbs) Battery Current: 1.25 Amps |
|||
Battery Charger |
Charger with status indicator Universal AC mains charger input: 100-240V, 1.5A, 50/60Hz Output: 12 Volts @ 1 Amps Battery Charger operating temperature range: 0 C to 30 C (32 F to 86 F) |
|||
Temperature & Environmental |
Ruggedized, environmentally sealed unit and connections Ingress protection (IP) rating of the Display Unit is IP65 under IEC 60529 Operating temperature range: -20 C to +50 C (-4 F to 122F) |
|||
Regulatory Specifications |
EMC: FCC 15.509 (USA), ETSI EN-302066 (EU), IC RSS-220 (Canada) Safety: TUV, CE |
|||
