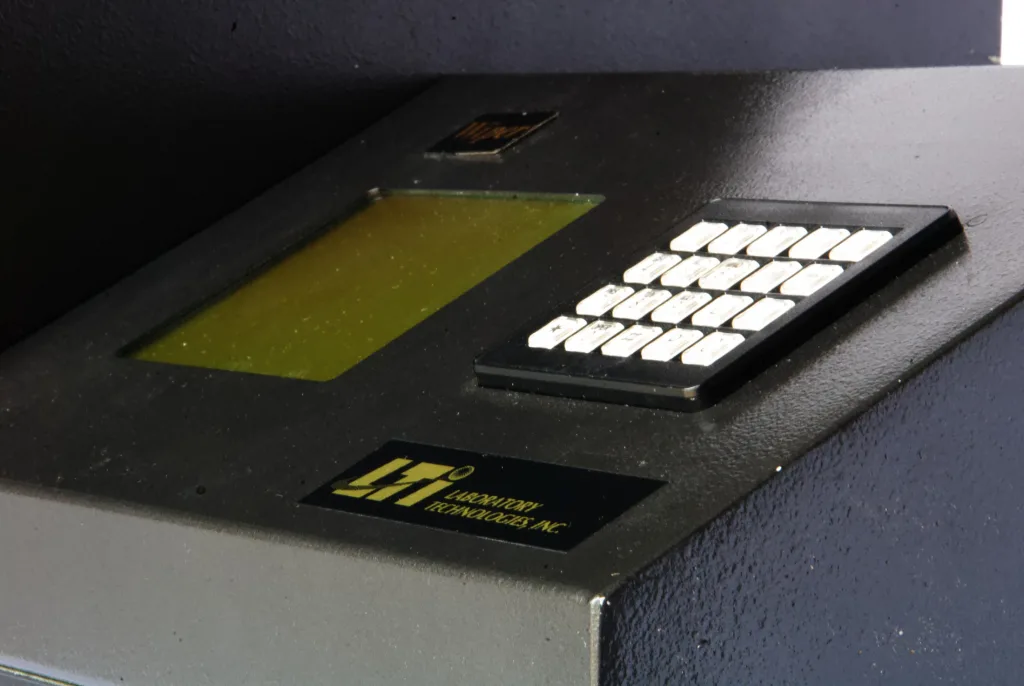

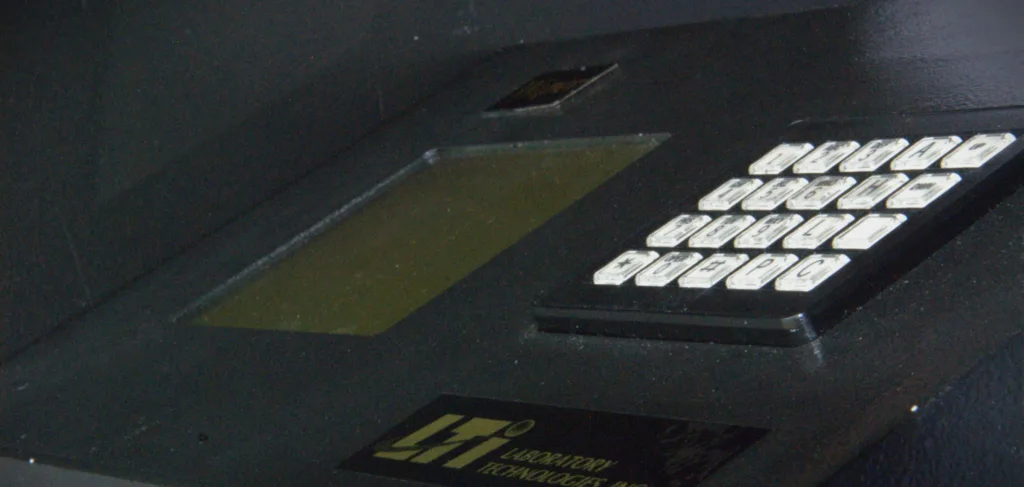

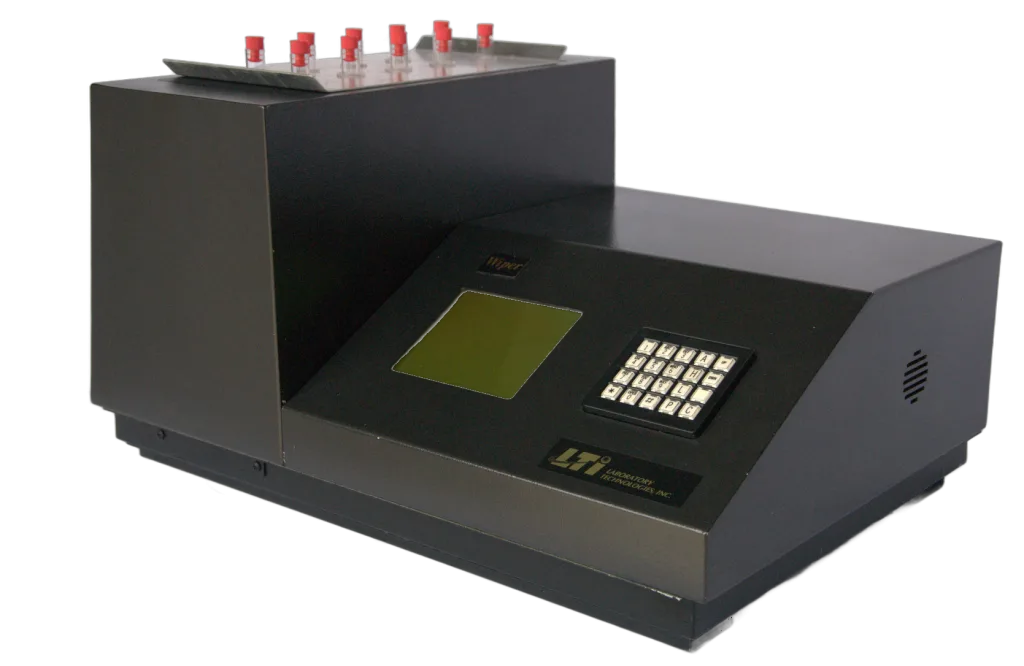

Multi-Wiper™ 多阱伽马计数器
返回Multi-Wiper——全球首款专为核医学科室打造的伽马计数器。2~10 阱配置,单一 Cs-137 源即可实现 AutoSpect™ DPM 测量,支持 16 组擦拭套件 × 每组 20 个点位、16 种预置核素。由 LTI 在美国设计制造。
Multi-Wiper——全球首款专为核医学科室打造的伽马计数器。2~10 阱配置,单一 Cs-137 源即可实现 AutoSpect™ DPM 测量,支持 16 组擦拭套件 × 每组 20 个点位、16 种预置核素。由 LTI 在美国设计制造。
在浏览器里直接操作一台真实的 Multi-Wiper。
真实的按键、真实的屏幕、实时的计数与打印报告——整台仪器在您的浏览器中运行。在询价之前,先看清它到底是怎么工作的。
让擦拭测试的等待时间彻底消失的计数器。
一个中等规模的核医学科室每周约做 40 份擦拭样品:单阱计数器要占用技师 40 分钟以上,而 10 阱 Multi-Wiper 只需 4 分钟。Multi-Wiper 基于 1985 年起即在临床实验室运行的 Genesys 平台探测器设计,如今针对擦拭测试流程配置,具备 AutoSpect™ 核素 DPM 自动测量、自动记录归档,并控制在科室现实可行的校准源预算之内。
把真实 DPM 与屏幕上的一个数字区分开来的探测器设计。

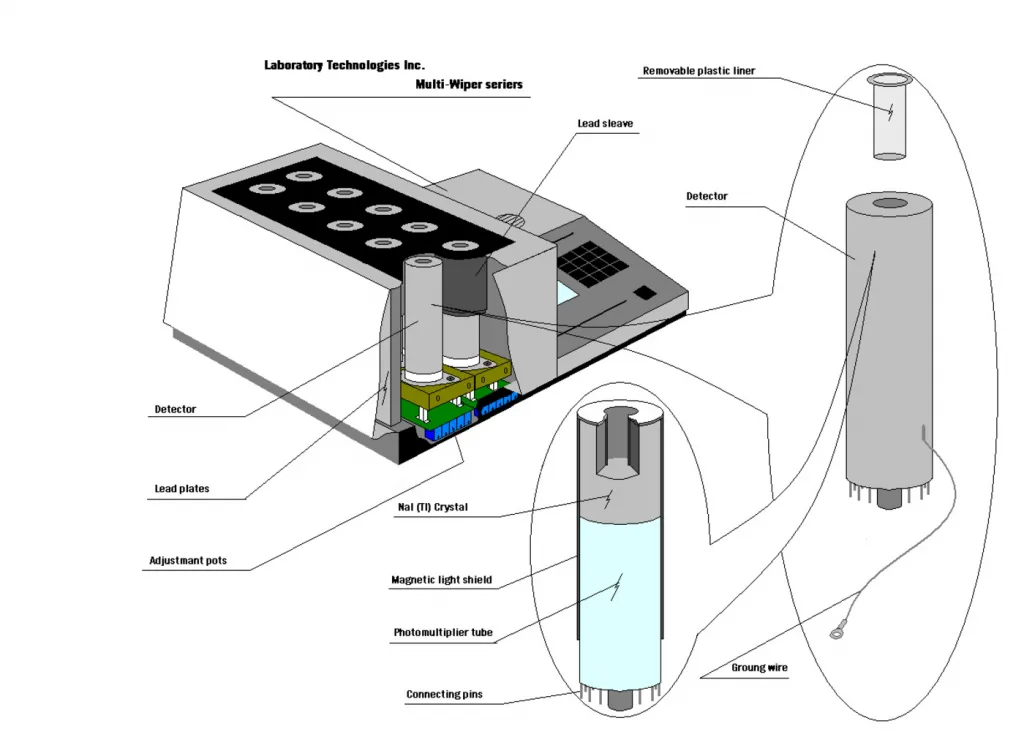

Multi-Wiper 的探测器阵列与自 1985 年服务于临床实验室的 Genesys 平台 NaI(Tl) 设计同源,并针对擦拭测试流程配置。本页的每一项指标,都取决于晶体中发生的事情。
标准型还是 HE 型——按核素选,不靠猜。
大多数科室应选择标准型 Multi-Wiper:它覆盖从 I-125(35 keV)到 Tc-99m、I-131 乃至 511 keV PET 湮灭辐射的全部分应用,2~10 阱可选,而价格只是零头。Multi-Wiper HE 是面向特殊需求的配置,适用于需要在 300–800 keV 中能段获得显著更高效率的场景——通常因为您的常规样品在标准探测器上接近或低于探测下限。同一机箱、同一软件、同一 AutoSpect™ 工作流,只是探测器阵列不同。
围绕繁忙热室的真实工作流打造。

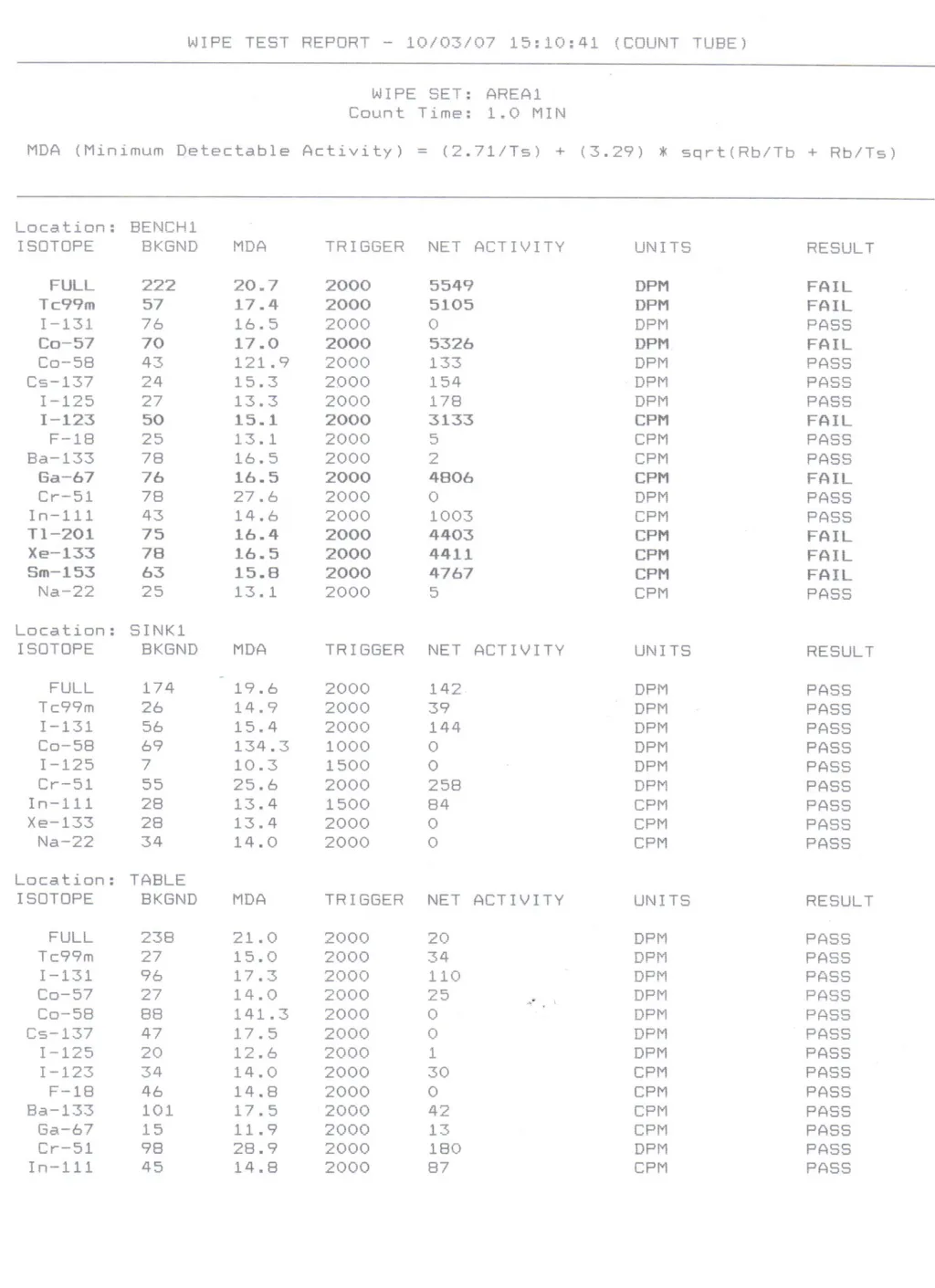

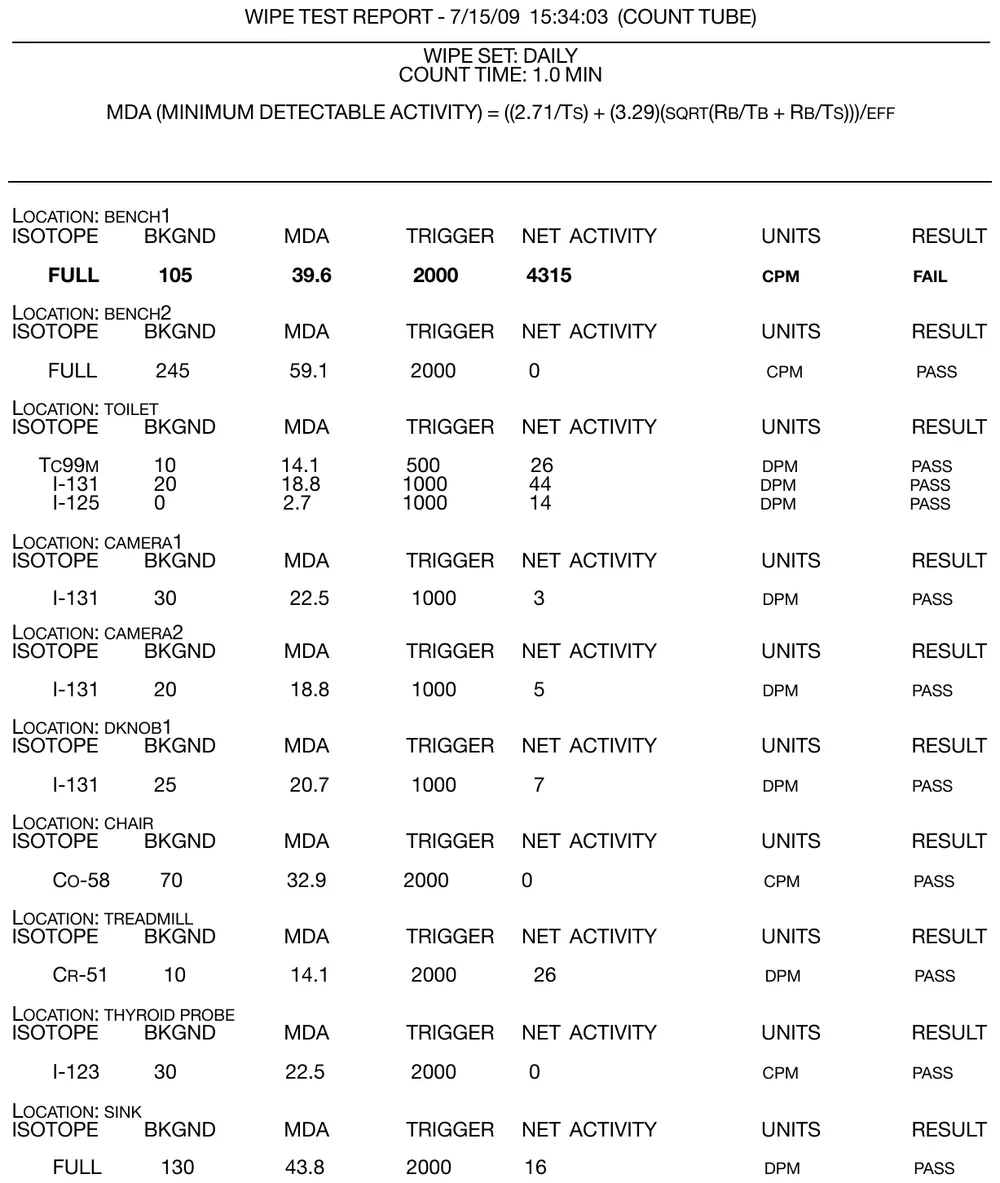

Multi-Wiper 的机载库按照核医学擦拭巡检的真实运行方式组织——而不是照搬老式 RIA 伽马计数器的接线逻辑。可编程测试类型、核素预设、点位清单和结构化报告,把每周的巡检变成按一个键的事。
仪器背后的数字。
以下所有规格均适用于 Multi-Wiper。不同配置的具体数据可能有差异,请与我们确认您预期配置的准确指标。
标准型还是 HE 型——按核素选,不靠猜。
大多数科室应选择标准型 Multi-Wiper:它覆盖从 I-125(35 keV)到 Tc-99m、I-131 乃至 511 keV PET 湮灭辐射的全部分应用,2~10 阱可选,而价格只是零头。Multi-Wiper HE 是面向特殊需求的配置,适用于需要在 300–800 keV 中能段获得显著更高效率的场景——通常因为您的常规样品在标准探测器上接近或低于探测下限。同一机箱、同一软件、同一 AutoSpect™ 工作流,只是探测器阵列不同。
围绕繁忙热室的真实工作流打造。
Multi-Wiper 的机载库按照核医学擦拭巡检的真实运行方式组织——而不是照搬老式 RIA 伽马计数器的接线逻辑。可编程测试类型、核素预设、点位清单和结构化报告,把每周的巡检变成按一个键的事。
| Spec | Multi-Wiper | Multi-Wiper HE |
|---|---|---|
| Detector array | ||
| Detector crystal | NaI(Tl) sized for routine clinical isotopes (Tc-99m, I-131, F-18, Ga-67, In-111, Tl-201) | 2″ × 2″ NaI(Tl) — bigger crystal mass for trace-sensitive mid-energy work |
| Optimized for | Standard clinical-isotope wipe surveys; full performance at 511 keV (F-18) | Cr-51 (320 keV), trace-level I-131 / Co-60, and other low-activity / high-energy work in the 300–800 keV band |
| Energy range | Up to 1 MeV | Up to 2 MeV |
| Detector / well count | 2, 3, 4, 5, 6, 8, or 10 wells (drilled NaI(Tl) + PMT per well) | 1, 2, or 3 detectors (the 2″×2″ crystals are physically larger, so the array is fewer-but-bigger) |
| Below 300 keV efficiency | Full efficiency on lower-energy isotopes (I-125, Tc-99m) | Lower than standard — crystal self-absorption is a real trade-off below ~300 keV |
| Well dimensions | 1.25″ deep × 0.669″ diameter (3.175 cm × 1.7 cm) — identical | |
| Well liner | Removable, replaceable plastic — identical | |
| Photomultiplier tube | Hamamatsu Photonics — every detector, every configuration. Identical PMT. | |
| Crystal-mass design principle | Asymmetric design with ⅞″ of crystal below the well — 3.5× the depth Capintec CapRAC leaves below its sample. Identical design principle as the Wiper Gold and Genii, scaled to multi-detector geometry. | |
| Shielding | ||
| Lead thickness | 0.85″ (2.16 cm) total radial — 0.65″ outer cast-lead sheet plus 0.2″ per-detector lead “pigs”; 0.4″ lead between adjacent wells — identical | |
| E-Lead™ crosstalk correction | Proprietary electronic correction across wells / detectors, effective up to 511 keV — identical | |
| Count rate & resolution | ||
| Count rate capability | Up to 300,000 CPS — identical | |
| Dead-time correction | Automatic — identical | |
| Multi-channel analyzer | 4096-channel MCA, 12-bit ADC, pole-zero baseline restoration — identical | |
| Integral linearity | Better than 0.5% — identical | |
| Electronics & firmware | ||
| Architecture | Embedded CPU; CPU, memory, I/O, MCA, and HV all on a single PCB (surface-mount CPLD) — identical | |
| Calibration | Single Cs-137 source covers all gamma-emitting isotopes via AutoSpect™ — identical | |
| Moving parts | None — 100% solid state — identical | |
| Connectivity, power, physical | ||
| Printer | Full-page laser or industrial impact (included) — identical | |
| Output | Configurable serial port for host / LIS connectivity — identical | |
| Power | 100–240 VAC universal, 50 / 60 Hz, < 30 W — identical | |
| Dimensions | 20″ W × 13.5″ D × 10.5″ H (51 × 34 × 27 cm) — identical chassis | |
| Weight | < 100 lb (45 kg), depending on configuration — identical chassis | |
| Build & lead time | ||
| Configuration model | Built from a fixed set of well counts (2/3/4/5/6/8/10) | Custom-configured per order (1/2/3 detectors, crystal pairing, calibration tuned to isotope mix) |
| Lead time | Standard manufacturing lead time | Longer than standard — contact LTI early in procurement |
| SKUs | ||
| Multi-Wiper Standard | LTIW1002US, LTIW1003US, LTIW1004US, LTIW1005US, LTIW1006US, LTIW1008US, LTIW1010US (2/3/4/5/6/8/10-well respectively) | |
| Multi-Wiper HE | Custom configuration — contact LTI for SKU and quote | |
| Manufacturing | ||
| Engineered & built in | Elburn, Illinois, USA — identical | |
| Service model | Field-replaceable parts shipped to your biomed, or send-in repair to LTI Elburn — identical | |
| Warranty | Standard manufacturer’s warranty — contact us for current terms | |
