适用 用于 泵 和 compressor 监测, 暖通空调 系统 和 general industrialapplications.

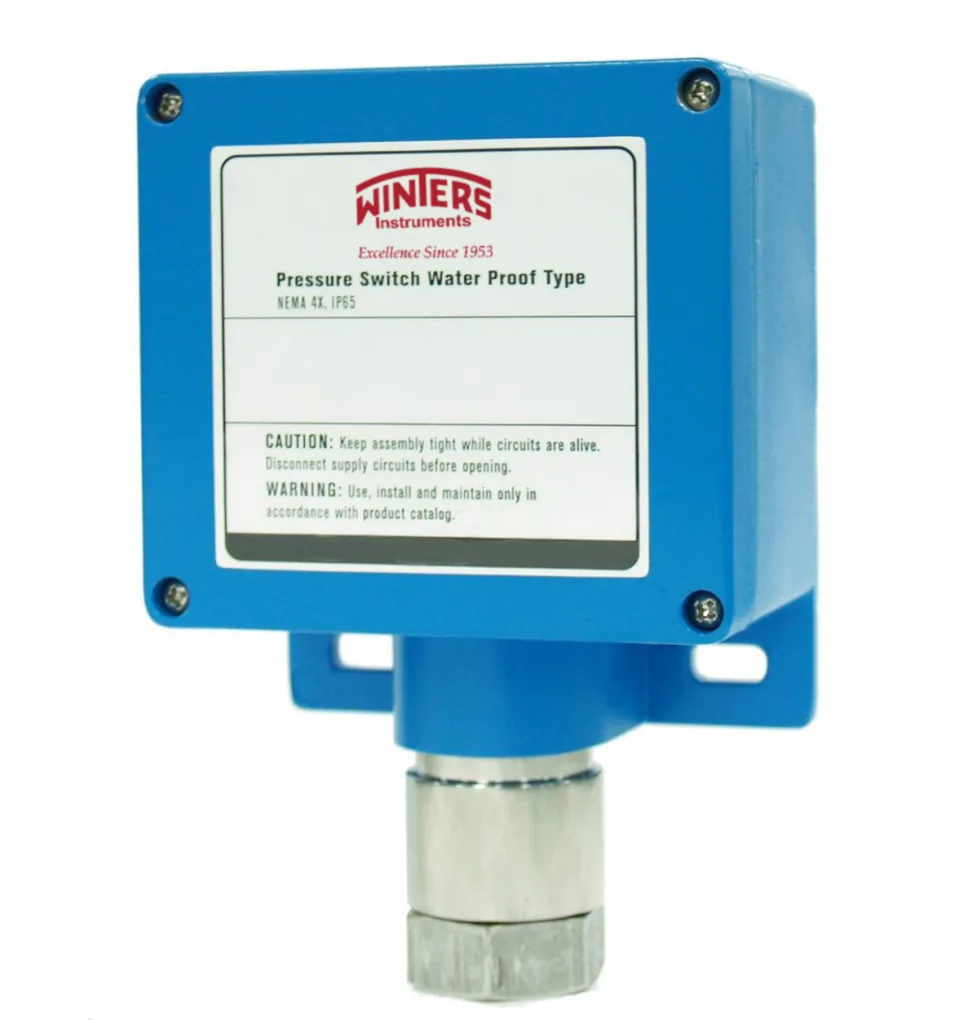

通用, watertight 压力开关
低压 以 4,000 psi
高 电流 ratings 用于 1 x SPDT 或 2 x SPDT 开关
fixed 或 可调 死区 选件
压铸 铝 结构 带 welded 密封
1% 精度
NEMA 4, 4X 与 IP66 额定
RU 认证 (开关 仅)
CRN registration pending
5 年 质保
| Housing | Heavy-duty die-cast aluminum, blue colour |
| Accuracy | +/- 1% of the adjustable set-point range |
| Pressure Connection | Female 1/4” or 1/2” NPT, BSP and M20xP1.5 |
| Electrical | Female 1/2” or 3/4” NPT, M20xP1.5 |
| Wetted Parts | 16 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed or Adjustable, see Order Codes below |
| Contact Rating |
Fixed Deadband: 15A @ 125/250VAC 0.4A @ 125VDC 3A @ 30VDC Gold contact microswitch 1A @ 125/250VAC Adjustable Deadband: 20A @ 125/250/480VAC 5A @ 125VDC |
| No. of Contacts | 1 x SPDT or 2 x SPDT (only 1 x SPDT available for Adjustable Deadband range) |
| Ambient/Process Temperature | -30 to 205 deg C (-22 to 400 deg F) |
| Enclosure Rating |
Rating NEMA 4 & 4X, IP66 Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion |
| Approvals | RU recognized (switch only) file #E12252, CRN registration pending |
| Weight | 3.4 lbs (1.54 kg) |
